Summary

Dataset 1

Experiments excluded

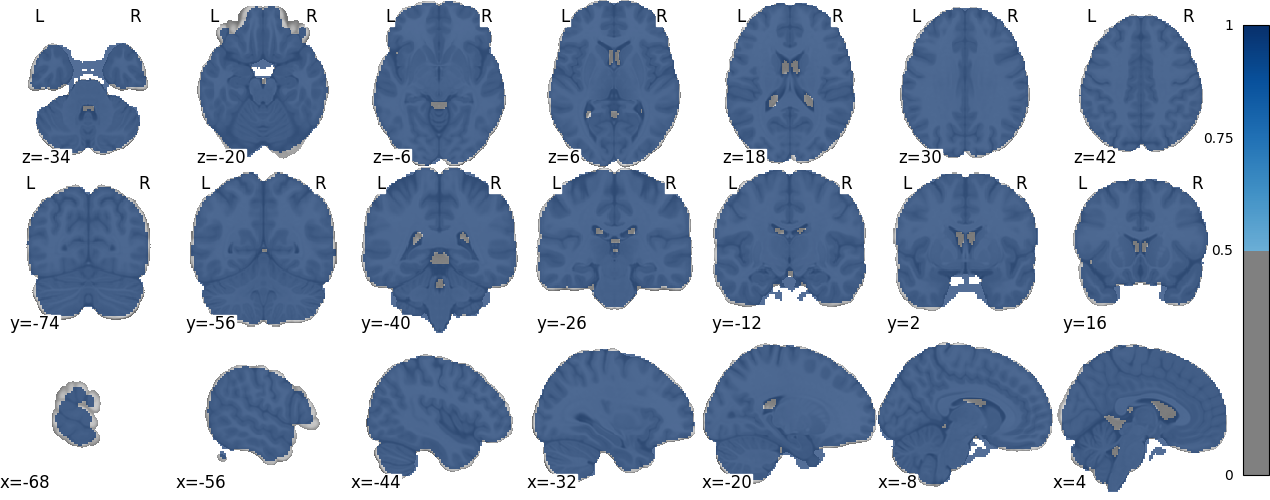

Mask

Get figure file: figures/preliminary_dset-1_figure-mask.png

DoF Map

Get figure file: figures/preliminary_dset-1_figure-dof.png
Advanced (Percentage of Valid Voxels)

Ridge Plot

Advanced (Summary Statistics)

Similarity of Input Maps

Meta-Analysis

Estimator

Parameters use to fit the meta-analytic estimator.

Corrector

Parameters use to fit the corrector.

Corrected meta-analytic map: z_corr-FDR_method-indep

Explorer

The following figure provides an interactive window to explore the meta-analytic map in detail.

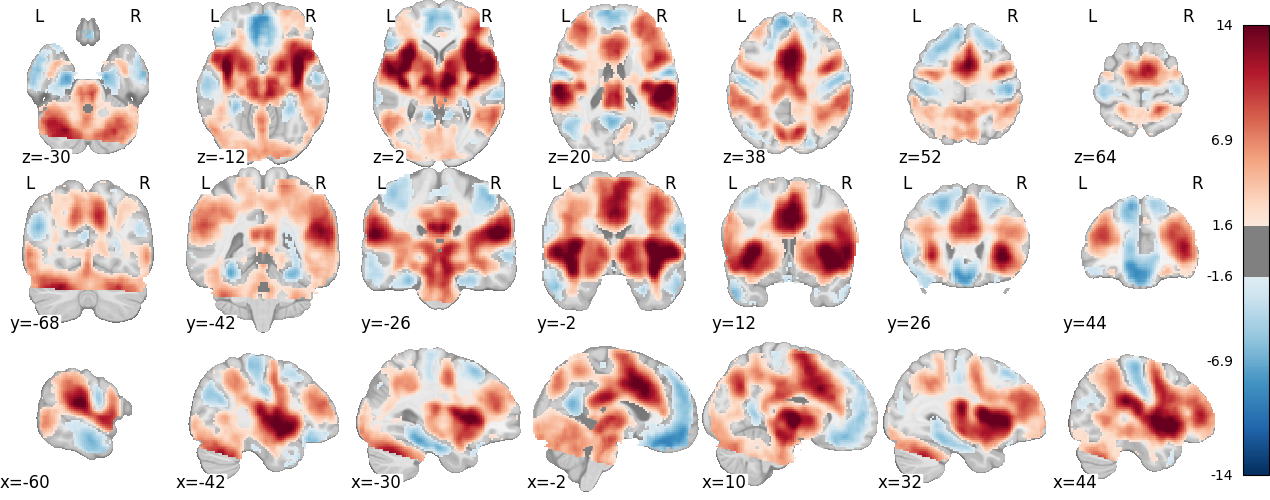

Slice viewer

This panel shows the the corrrected meta-analytic map.

Get figure file: figures/corrector_figure-static.png

Diagnostics

Target image: z_corr-FDR_method-indep

Significant clusters

    X Y Z Peak Stat Cluster Size (mm3)
Tail Cluster ID
Positive 1 -60.00 -24.00 20.00 13.84 1061856
1a -52.00 -2.00 2.00 13.84
1b -38.00 -20.00 12.00 13.84
1c -38.00 6.00 -2.00 13.84
2 18.00 -4.00 -44.00 2.97 336
3 16.00 20.00 -24.00 2.90 272
4 40.00 -22.00 -34.00 2.55 128
5 -26.00 -8.00 -44.00 2.32 120
Negative 9 -4.00 36.00 -20.00 -9.57 99400
9a 2.00 30.00 -22.00 -9.05
9b -4.00 52.00 -14.00 -9.00
9c 2.00 50.00 -20.00 -8.97
10 -8.00 -56.00 8.00 -8.17 22960
10a 8.00 -54.00 8.00 -5.42
10b 22.00 -82.00 36.00 -4.26
10c 48.00 -66.00 22.00 -4.26
11 -24.00 -12.00 -28.00 -8.15 11776
11a -32.00 -36.00 -20.00 -7.75
12 20.00 -10.00 -28.00 -7.59 13816
12a 26.00 -42.00 -18.00 -6.36
12b 32.00 -46.00 -4.00 -4.24
12c 26.00 -40.00 6.00 -3.25
13 60.00 -4.00 22.00 -7.28 16512
13a 48.00 -24.00 52.00 -6.64
13b 58.00 -10.00 34.00 -6.14
13c 46.00 -18.00 44.00 -5.74
14 60.00 -6.00 -28.00 -7.01 13912
14a 58.00 -10.00 -12.00 -5.15
14b 66.00 -24.00 -2.00 -4.92
14c 56.00 2.00 -34.00 -4.71
15 -56.00 -14.00 -22.00 -6.96 30408
15a -52.00 12.00 -36.00 -6.56
15b -46.00 32.00 -18.00 -6.06
15c -54.00 -2.00 -30.00 -5.89
16 -50.00 -10.00 28.00 -6.67 17496
16a -44.00 -24.00 56.00 -5.77
16b -40.00 -22.00 64.00 -4.92
16c -66.00 -6.00 20.00 -4.63
17 -48.00 -66.00 26.00 -6.50 8896
17a -26.00 -80.00 38.00 -2.46
18 4.00 -28.00 60.00 -3.68 1864
18a 8.00 -32.00 68.00 -3.13
18b -6.00 -26.00 56.00 -2.09
19 0.00 8.00 -30.00 -3.21 80
20 26.00 12.00 -34.00 -2.74 336
20a 24.00 18.00 -28.00 -2.17
20b 24.00 18.00 -40.00 -2.13
21 28.00 26.00 -24.00 -2.74 304
21a 34.00 32.00 -22.00 -2.69
22 26.00 -64.00 60.00 -2.58 224
23 -20.00 -84.00 24.00 -2.56 352
23a -12.00 -86.00 26.00 -1.98

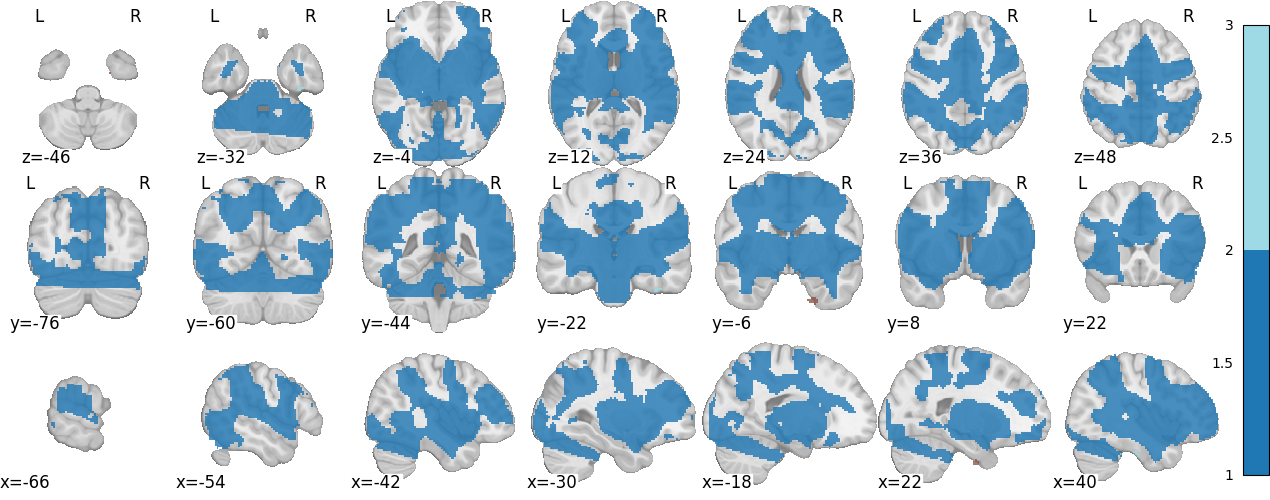

Label map: positive tail

Get figure file: figures/diagnostics_tail-positive_figure.png

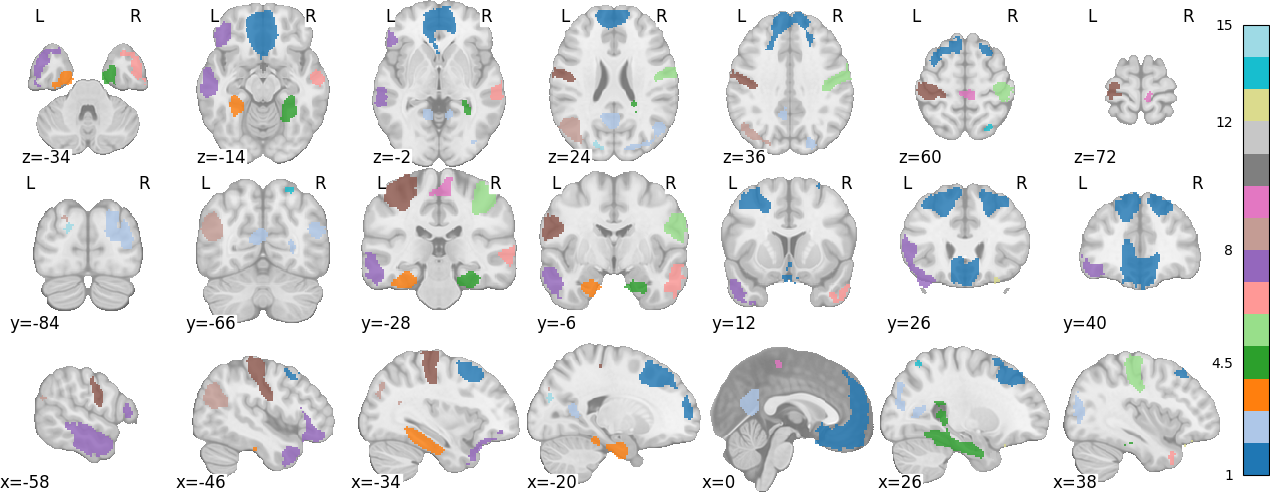

Label map: negative tail

Get figure file: figures/diagnostics_tail-negative_figure.png

Jackknife

The Jackknife analysis characterizes the relative contribution of each experiment in a meta-analysis to the resulting clusters by looping through experiments, calculating the Estimator's summary statistic for all experiments except the target experiment, dividing the resulting test summary statistics by the summary statistics from the original meta-analysis, and finally averaging the resulting proportion values across all voxels in each cluster.

The heatmap presents the relative contributions of each experiment to each cluster in the thresholded map. There is one row for each experiment, and one column for each cluster, with column names being PostiveTail/NegativeTail indicating the sign (+/-) of the cluster's statistical values. The rows and columns were re-ordered to form clusters in the heatmap.

Methods

We kindly ask to report results preprocessed with this tool using the following boilerplate.

An image-based meta-analysis was performed with NiMARE 0.20.0+5.g605e03f (RRID:SCR_017398;
\citealt{Salo2023}) on 21 z-statistic images using the Stouffer method
\citep{stouffer1949american}. False discovery rate correction was performed with the Benjamini-
Hochberg procedure \citep{benjamini1995controlling}.

Bibliography

@article{Salo2023,
  doi = {10.52294/001c.87681},
  url = {https://doi.org/10.52294/001c.87681},
  year = {2023},
  volume = {3},
  pages = {1 - 32},
  author = {Taylor Salo and Tal Yarkoni and Thomas E. Nichols and Jean-Baptiste Poline and Murat Bilgel and Katherine L. Bottenhorn and Dorota Jarecka and James D. Kent and Adam Kimbler and Dylan M. Nielson and Kendra M. Oudyk and Julio A. Peraza and Alexandre Pérez and Puck C. Reeders and Julio A. Yanes and Angela R. Laird},
  title = {NiMARE: Neuroimaging Meta-Analysis Research Environment},
  journal = {Aperture Neuro}
}
@article{benjamini1995controlling,
  title={Controlling the false discovery rate: a practical and powerful approach to multiple testing},
  author={Benjamini, Yoav and Hochberg, Yosef},
  journal={Journal of the Royal statistical society: series B (Methodological)},
  volume={57},
  number={1},
  pages={289--300},
  year={1995},
  publisher={Wiley Online Library},
  url={https://doi.org/10.1111/j.2517-6161.1995.tb02031.x},
  doi={10.1111/j.2517-6161.1995.tb02031.x}
}
@article{stouffer1949american,
  title={The american soldier: Adjustment during army life.(studies in social psychology in world war ii), vol. 1},
  author={Stouffer, Samuel A and Suchman, Edward A and DeVinney, Leland C and Star, Shirley A and Williams Jr, Robin M},
  journal={Studies in social psychology in World War II},
  year={1949},
  publisher={Princeton Univ. Press}
}
